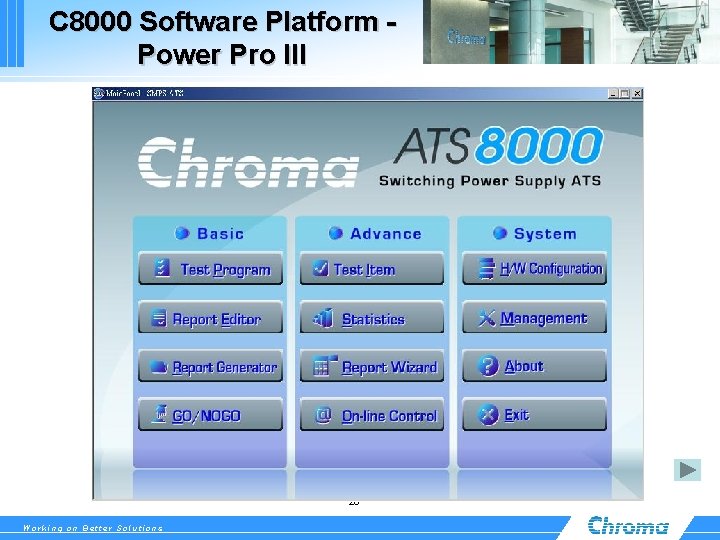

Chroma 8000 Software

Chroma

Model 8000 Switching Power Supply ATS (SMPS ATS)

Chroma
Key Features
  • Open architecture software platform
    - Support instrument with GPIB / RS-232 or RS-485 / I2C /CAN BUS interfaces
    - User editable test item
    - User editable test program
    - User editable report format
    - Statistical report
    - On-line control function
    - User authority control
    - Release control
    - Activity log
    - Master / Slave control mode
    - Multi-UUT test capability for single-output PSU
    - Support bar code reader
    - Support Shop-floor control
    - Remote monitoring via internet
  • Test command optimizer helps to improve test speed
  • Capable of coding for any power supply testing applications
  • Comprehensive hardware modules provide high accuracy and repetitive measurements
  • High test throughput by system default test items
  • Cost effective
  • Other hardware expandable upon request
  • Windows 98/NT/2000 or higher based software

Product Details

his auto test system uses the unique test command optimization technology to prevent the repeating control commands from sending to the system hardware devices. This improves the system test speed dramatically and makes Chroma 8000, which uses open software architecture, highly efficient as a close or optimized auto test system.

To meet the power supply test requirements, Chroma Power Supply Auto Test System model 8000 has built in 56 ready-made test items. Users may create new test items based on new test requirements using the test item editing function, which gives users the capability to expand the test items unlimitedly.

With the powerful report, statistic and management functions, Chroma Power Supply Auto Test System model 8000 is able to provide complete tools to generate various test documents and perform system administration. Because the test and statistical reports are equally important nowadays for R/D evaluation, QA verification and mass production tests. So these save users a great deal of time for paper work.

Working under Windows 98/NT/2000 or higher operation system, Chroma 8000 Power Supply Auto Test System is able to get all the resources provided by Windows; thus, it can easily export the test results to network or to your web-page for remote manufacturing monitoring.

Chroma 8000 Comprehensive Test Items

1. Input / Output Test
2. Input Current Test
3. Inrush Current Test
4. Power Efficiency Test
5. Power Efficiency Correlation Test
6. Static Test
7. Hold On Adjust Test
8. Voltage Regulation Test
9. Current Regulation Test
10. Noise Test
11. Noise Test_2
12. Total Regulation Test
13. Total Regulation with Noise Test
14. Total Regulation Test With All State Data
15. Output Voltage v.s Loading Correlation Test
16. Extended Measurement Test
17. Dynamic Test
18. Dynamic Test_2
19. Sync Dynamic Test
20. Sync Dynamic Test_2
21. Sync Dynamic Test_3
22. Transient Response Test
23. Transient Response Test_2
24. Turn On & Sequence Test
25. Hold Up & Sequence Test
26. Extra Timing Test
27. Overshoot Voltage Test
28. Overshoot Voltage Test_2
29. Overshoot Voltage Test_3
30. Power On Sequence Test
31. Power Off Sequence Test		32. Over Load Protection Test
33. Over Power Protection Test
34. OVP/UVP Test
35. OVP/UVP Test_2
36. Short Circuit Test
37. Short Circuit Current Test
38. Vin Ramp Shut Down Test
39. Fin Ramp Shut Down Test
40. Vin Ramp Start Up Test
41. Fin Ramp Start Up Test
42. Cycle Dropout Test
43. Cycle Dropout Test_2
44. Cycle Dropout Test_3
45. Cycle Dropout Test_4
46. Power Line Disturbance Test
47. Current Harmonics Test_1
48. Current Harmonics Test_2
49. Input Source Presetup
50. Load PreSetup
51. Dynamic Load Value PreSetup
52. TTL/Relay PreSetup
53. System Setup
54. Input Source Setup
55. Load Setup
56. TTL/Relay Setup
57. DSO Setup
58. DSO Setup for 4 Channels
59. Get DSO Image
60. Pause Message
61. GPIB Write
62. RS232 Write
